接着上一篇的介绍完核心概念后,尝试下搭建k8s的集群,准备了六台虚拟机用于部署k8s的运行环境。


一. 环境准备及虚拟机信息

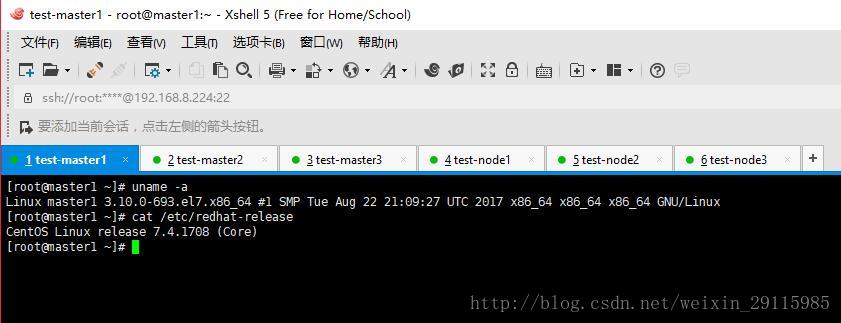

1. 虚拟机环境

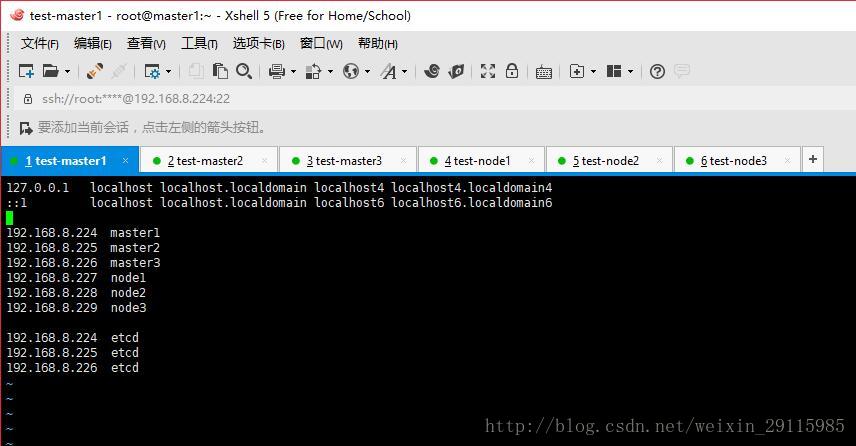

2. 六台虚机信息(自行配置 /etc/hosts 文件)

  节点功能  主机名  IP
  master1、etcd1      master1      192.168.8.224
  master2、etcd2  master2  192.168.8.225
  master3、etcd3  master3  192.168.8.226
  node1  node1  192.168.8.227
  node2  node2  192.168.8.228
  node3  node3  192.168.8.229



3. 关闭六台虚机的防火墙:
systemctl disable firewalld
systemctl stop firewalld

二. etcd集群搭建

1. 安装etcd
yum install etcd -y


2. 配置etcd

yum安装的etcd默认配置文件在/etc/etcd/etcd.conf,以下将三个节点上的配置贴出来,请注意不同点。

2379是默认的使用端口,为了防止端口占用问题的出现,增加4001端口备用。

master1 :

# [member]
ETCD_NAME=etcd1
ETCD_DATA_DIR="/var/lib/etcd/test.etcd"
#ETCD_WAL_DIR=""
#ETCD_SNAPSHOT_COUNT="10000"
#ETCD_HEARTBEAT_INTERVAL="100"
#ETCD_ELECTION_TIMEOUT="1000"
ETCD_LISTEN_PEER_URLS="http://0.0.0.0:2380"
ETCD_LISTEN_CLIENT_URLS="http://0.0.0.0:2379,http://0.0.0.0:4001"
#ETCD_MAX_SNAPSHOTS="5"
#ETCD_MAX_WALS="5"
#ETCD_CORS=""
#
#[cluster]
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://master1:2380"
# if you use different ETCD_NAME (e.g. test), set ETCD_INITIAL_CLUSTER value for this name, i.e. "test=http://..."
ETCD_INITIAL_CLUSTER="etcd1=http://master1:2380,etcd2=http://master2:2380,etcd3=http://master3:2380"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster-baby"
ETCD_ADVERTISE_CLIENT_URLS="http://master1:2379,http://master1:4001"

master2 :
# [member]
ETCD_NAME=etcd2
ETCD_DATA_DIR="/var/lib/etcd/test.etcd"
#ETCD_WAL_DIR=""
#ETCD_SNAPSHOT_COUNT="10000"
#ETCD_HEARTBEAT_INTERVAL="100"
#ETCD_ELECTION_TIMEOUT="1000"
ETCD_LISTEN_PEER_URLS="http://0.0.0.0:2380"
ETCD_LISTEN_CLIENT_URLS="http://0.0.0.0:2379,http://0.0.0.0:4001"
#ETCD_MAX_SNAPSHOTS="5"
#ETCD_MAX_WALS="5"
#ETCD_CORS=""
#
#[cluster]
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://master2:2380"
# if you use different ETCD_NAME (e.g. test), set ETCD_INITIAL_CLUSTER value for this name, i.e. "test=http://..."
ETCD_INITIAL_CLUSTER="etcd1=http://master1:2380,etcd2=http://master2:2380,etcd3=http://master3:2380"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster-baby"
ETCD_ADVERTISE_CLIENT_URLS="http://master2:2379,http://master2:4001"

master3 :

# [member]
ETCD_NAME=etcd3
ETCD_DATA_DIR="/var/lib/etcd/test.etcd"
#ETCD_WAL_DIR=""
#ETCD_SNAPSHOT_COUNT="10000"
#ETCD_HEARTBEAT_INTERVAL="100"
#ETCD_ELECTION_TIMEOUT="1000"
ETCD_LISTEN_PEER_URLS="http://0.0.0.0:2380"
ETCD_LISTEN_CLIENT_URLS="http://0.0.0.0:2379,http://0.0.0.0:4001"
#ETCD_MAX_SNAPSHOTS="5"
#ETCD_MAX_WALS="5"
#ETCD_CORS=""
#
#[cluster]
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://master3:2380"
# if you use different ETCD_NAME (e.g. test), set ETCD_INITIAL_CLUSTER value for this name, i.e. "test=http://..."
ETCD_INITIAL_CLUSTER="etcd1=http://master1:2380,etcd2=http://master2:2380,etcd3=http://master3:2380"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster-baby"
ETCD_ADVERTISE_CLIENT_URLS="http://master3:2379,http://master3:4001"

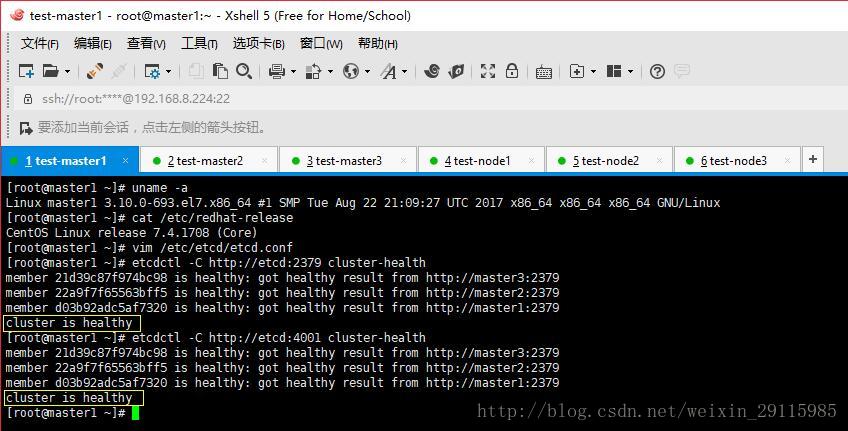

修改好以上配置后,在各个节点上启动etcd服务,并验证集群状态:
systemctl start etcd
systemctl enable etcd
etcdctl -C http://etcd:2379 cluster-health
etcdctl -C http://etcd:4001 cluster-health
集群状态没问题后可继续操作:



三. 部署 master

1. 安装 docker ,设置开机自启动并开启服务
yum install docker -y
chkconfig docker on
service docker start


2. 安装 kubernetes
yum install kubernetes -y
在 master 的虚机上,需要运行三个组件: Kubernets API ServerKubernets Controller ManagerKubernets Scheduler
首先修改  /etc/kubernetes/apiserver 文件:
###
# kubernetes system config
#
# The following values are used to configure the kube-apiserver
#

# The address on the local server to listen to.
KUBE_API_ADDRESS="--insecure-bind-address=0.0.0.0"

# The port on the local server to listen on.
KUBE_API_PORT="--port=8080"

# Port minions listen on
# KUBELET_PORT="--kubelet-port=10250"

# Comma separated list of nodes in the etcd cluster
KUBE_ETCD_SERVERS="--etcd-servers=http://etcd:2379"

# Address range to use for services
KUBE_SERVICE_ADDRESSES="--service-cluster-ip-range=10.254.0.0/16"

# default admission control policies
# KUBE_ADMISSION_CONTROL="--admission-control=NamespaceLifecycle,NamespaceExists,LimitRanger,SecurityContextDeny,ServiceAccount,ResourceQuota"
KUBE_ADMISSION_CONTROL="--admission-control=NamespaceLifecycle,NamespaceExists,LimitRanger,SecurityContextDeny,ResourceQuota"

# Add your own!
KUBE_API_ARGS=""
接着修改  /etc/kubernetes/config  文件:(最后一句 masterX:8080 ,对应master1/2/3机器就好)
###
# kubernetes system config
#
# The following values are used to configure various aspects of all
# kubernetes services, including
#
#   kube-apiserver.service
#   kube-controller-manager.service
#   kube-scheduler.service
#   kubelet.service
#   kube-proxy.service
# logging to stderr means we get it in the systemd journal
KUBE_LOGTOSTDERR="--logtostderr=true"

# journal message level, 0 is debug
KUBE_LOG_LEVEL="--v=0"

# Should this cluster be allowed to run privileged docker containers
KUBE_ALLOW_PRIV="--allow-privileged=false"

# How the controller-manager, scheduler, and proxy find the apiserver
KUBE_MASTER="--master=http://master1:8080"
修改完成后,启动服务并设置开机自启动即可:
systemctl enable kube-apiserver
systemctl start kube-apiserver
systemctl enable kube-controller-manager
systemctl start kube-controller-manager
systemctl enable kube-scheduler
systemctl start kube-scheduler


四. 部署 node

1. 安装 docker ,设置开机自启动并开启服务
yum install docker -y
chkconfig docker on
service docker start

2. 安装 kubernetes
yum install kubernetes -y
在 node 的虚机上,需要运行三个组件: KubeletKubernets Proxy
首先修改  /etc/kubernetes/config 文件:(注意:这里配置的是etcd的地址,也就是master1/2/3的地址其中之一)
###
# kubernetes system config
#
# The following values are used to configure various aspects of all
# kubernetes services, including
#
#   kube-apiserver.service
#   kube-controller-manager.service
#   kube-scheduler.service
#   kubelet.service
#   kube-proxy.service
# logging to stderr means we get it in the systemd journal
KUBE_LOGTOSTDERR="--logtostderr=true"

# journal message level, 0 is debug
KUBE_LOG_LEVEL="--v=0"

# Should this cluster be allowed to run privileged docker containers
KUBE_ALLOW_PRIV="--allow-privileged=false"

# How the controller-manager, scheduler, and proxy find the apiserver
KUBE_MASTER="--master=http://etcd:8080"

接着修改 /etc/kubernetes/kubelet 文件:(注:--hostname-override= 对应的node机器)

###
# kubernetes kubelet (minion) config

# The address for the info server to serve on (set to 0.0.0.0 or "" for all interfaces)
KUBELET_ADDRESS="--address=0.0.0.0"

# The port for the info server to serve on
# KUBELET_PORT="--port=10250"

# You may leave this blank to use the actual hostname
KUBELET_HOSTNAME="--hostname-override=node1"

# location of the api-server
KUBELET_API_SERVER="--api-servers=http://etcd:8080"

# pod infrastructure container
KUBELET_POD_INFRA_CONTAINER="--pod-infra-container-image=registry.access.redhat.com/rhel7/pod-infrastructure:latest"

# Add your own!
KUBELET_ARGS=""
修改完成后,启动服务并设置开机自启动即可:
systemctl enable kubelet
systemctl start kubelet
systemctl enable kube-proxy
systemctl start kube-proxy


3. 查看集群状态

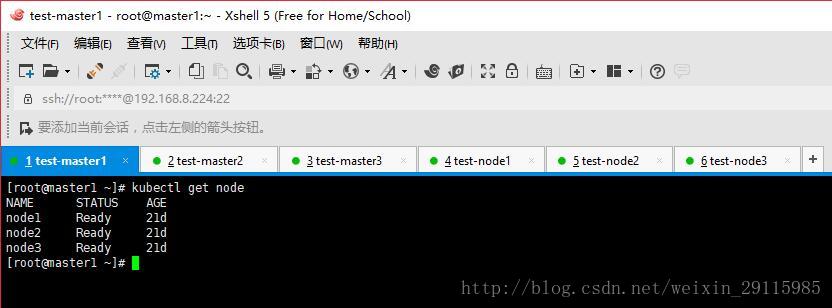

在任意一台master上查看集群中节点及节点状态:
kubectl get node


至此,已经搭建了一个kubernetes集群了,但目前该集群还不能很好的工作,因为需要对集群中pod的网络进行统一管理。


五. 创建覆盖网络 flannel

1. 在master、node上均执行如下命令,安装 flannel

yum install flannel -y

2. 在master、node上均编辑 /etc/sysconfig/flanneld 文件

# Flanneld configuration options

# etcd url location.  Point this to the server where etcd runs
FLANNEL_ETCD_ENDPOINTS="http://etcd:2379"

# etcd config key.  This is the configuration key that flannel queries
# For address range assignment
FLANNEL_ETCD_PREFIX="/atomic.io/network"

# Any additional options that you want to pass
#FLANNEL_OPTIONS=""

3. 配置etcd中关于flannel的key

flannel使用etcd进行配置,来保证多个flannel实例之间的配置一致性,所以需要在etcd上进行如下配置:

etcdctl mk /atomic.io/network/config '{ "Network": "10.0.0.0/16" }'

(‘/atomic.io/network/config’这个key与上文/etc/sysconfig/flannel中的配置项FLANNEL_ETCD_PREFIX是相对应的,错误的话启动就会出错)


4. 启动修改后的 flannel ,并依次重启docker、kubernete

在 master 虚机上执行:

systemctl enable flanneld
systemctl start flanneld
service docker restart
systemctl restart kube-apiserver
systemctl restart kube-controller-manager
systemctl restart kube-scheduler

在  node 虚机上执行:

systemctl enable flanneld
systemctl start flanneld
service docker restart
systemctl restart kubelet
systemctl restart kube-proxy


参考:

Centos7下Etcd集群搭建:http://www.cnblogs.com/zhenyuyaodidiao/p/6237019.html

Centos7部署Kubernetes集群:http://www.cnblogs.com/zhenyuyaodidiao/p/6500830.html

Docker网络及flannel介绍:http://blog.csdn.net/zhaoguoguang/article/details/51161957
