Kubernetes快速部署
Kubernetes快速部署安装要求在开始之前，部署Kubernetes集群机器需要满足以下几个条件：-至少3台机器，操作系统 CentOS7+硬件配置：2GB或更多RAM，2个CPU或更多CPU，硬盘20GB或更多集群中所有机器之间网络互通可以访问外网，需要拉取镜像禁止swap分区学习目标在所有节点上安装Docker和kubeadm部署Kubernetes Master部署容器网络插件部署 Ku
·
Kubernetes快速部署
安装要求
在开始之前，部署Kubernetes集群机器需要满足以下几个条件：
-至少3台机器，操作系统 CentOS7+
- 硬件配置：2GB或更多RAM，2个CPU或更多CPU，硬盘20GB或更多
- 集群中所有机器之间网络互通
- 可以访问外网，需要拉取镜像
- 禁止swap分区
学习目标
- 在所有节点上安装Docker和kubeadm
- 部署Kubernetes Master
- 部署容器网络插件
- 部署 Kubernetes Node，将节点加入Kubernetes集群中
- 部署Dashboard Web页面，可视化查看Kubernetes资源
准备环境
| 系统环境 | 角色 | IP |
|---|---|---|
| centos8 | master | 192.168.200.140 |
| centos8 | node1 | 192.168.200.142 |
| centos7 | node2 | 192.168.200.143 |
//更改主机名
[root@localhost ~]# hostnamectl set-hostname master.example.com
[root@localhost ~]# bash
[root@master ~]# hostname
master.example.com
[root@master ~]# hostnamectl set-hostname node1.example.com
[root@master ~]# bash
[root@node1 ~]# hostname
node1.example.com
[root@localhost ~]# hostnamectl set-hostname node2.example.com
[root@localhost ~]#
[root@localhost ~]# bash
[root@node2 ~]# hostname
node2.example.com
//关闭防火墙
//master主机上操作
[root@master ~]# systemctl disable --now firewalld
[root@master ~]# sed -i 's/enforcing/disabled/' /etc/selinux/config
//node1主机上操作
[root@node1 ~]# systemctl disable --now firewalld
[root@node1 ~]# sed -i 's/enforcing/disabled/' /etc/selinux/config
//node2主机上操作
[root@node2 ~]# systemctl disable --now firewalld
[root@node2 ~]# sed -i 's/enforcing/disabled/' /etc/selinux/config
//master主机上操作
// 关闭swap
注释掉或删掉swap分区（我这里是注释掉的）
[root@master ~]# vim /etc/fstab
#/dev/mapper/cs-swap none swap defaults 0 0
//node1主机上操作
[root@node1 ~]# vim /etc/fstab
#/dev/mapper/centos-swap swap swap defaults 0 0
//node2主机上操作
[root@node2 ~]# vim /etc/fstab
#/dev/mapper/cs-swap none swap defaults 0 0
/在master添加hosts
[root@master ~]# vi /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.200.140 master master.example.com
192.168.200.142 node1 node1.example.com
192.168.200.143 node2 node2.example.com
//将桥接的IPv4流量传递到iptables的链
//master主机上操作
[root@master ~]# vi /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
[root@master ~]# sysctl --system
* Applying /usr/lib/sysctl.d/10-default-yama-scope.conf ...
kernel.yama.ptrace_scope = 0
* Applying /usr/lib/sysctl.d/50-coredump.conf ...
kernel.core_pattern = |/usr/lib/systemd/systemd-coredump %P %u %g %s %t %c %h %e
* Applying /usr/lib/sysctl.d/50-default.conf ...
kernel.sysrq = 16
kernel.core_uses_pid = 1
kernel.kptr_restrict = 1
net.ipv4.conf.all.rp_filter = 1
net.ipv4.conf.all.accept_source_route = 0
net.ipv4.conf.all.promote_secondaries = 1
net.core.default_qdisc = fq_codel
fs.protected_hardlinks = 1
fs.protected_symlinks = 1
* Applying /usr/lib/sysctl.d/50-libkcapi-optmem_max.conf ...
net.core.optmem_max = 81920
* Applying /usr/lib/sysctl.d/50-pid-max.conf ...
kernel.pid_max = 4194304
* Applying /etc/sysctl.d/99-sysctl.conf ...
* Applying /etc/sysctl.d/k8s.conf ...
* Applying /etc/sysctl.conf ...
//配置时间同步
//所有主机上操作
[root@master ~]# yum -y install chrony
[root@master ~]# vim /etc/chrony.conf
3 pool time1.aliyun.com iburst
[root@master ~]# systemctl enable --now chronyd
[root@node1 ~]# yum -y install chrony
[root@node1 ~]# vim /etc/chrony.conf
3 pool time1.aliyun.com iburst
[root@node1 ~]# systemctl enable --now chronyd
[root@node2 ~]# yum -y install chrony
[root@node2 ~]# vim /etc/chrony.conf
3 server time1.aliyun.com iburst
4 #server 0.centos.pool.ntp.org iburst
5 #server 1.centos.pool.ntp.org iburst
6 #server 2.centos.pool.ntp.org iburst
7 #server 3.centos.pool.ntp.org iburst
[root@node2 ~]# systemctl enable --now chronyd
//配置免密认证
//master主机上操作
[root@master ~]# ssh-keygen -t rsa
[root@master ~]# ssh-copy-id master
[root@master ~]# ssh-copy-id node1
[root@master ~]# ssh-copy-id node2
//测试
[root@master ~]# for i in master node1 node2;do ssh $i 'date';done
2021年 12月 18日 星期六 18:31:39 CST
2021年 12月 18日 星期六 18:31:40 CST
2021年 12月 18日 星期六 18:31:40 CST
//重启让刚刚的操作生效
[root@master ~]# reboot
[root@node1 ~]# reboot
[root@node2 ~]# reboot
所有节点安装Docker/kubeadm/kubelet
Kubernetes默认CRI（容器运行时）为Docker，因此先安装Docker。
安装docker
//所有主机上操作
// 下载docker源
[root@master ~]# cd /etc/yum.repos.d/
[root@master yum.repos.d]# wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
[root@node1 ~]# cd /etc/yum.repos.d/
[root@node1 yum.repos.d]# wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
[root@node2 ~]# cd /etc/yum.repos.d/
[root@node2 yum.repos.d]# wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
//安装docker
[root@master ~]# yum -y install docker-ce
[root@node1 ~]# yum -y install docker-ce
[root@node2 ~]# yum -y install docker-ce
//设置docker开机自启
[root@master ~]# systemctl enable --now docker
Created symlink /etc/systemd/system/multi-user.target.wants/docker.service → /usr/lib/systemd/system/docker.service.
[root@node1 ~]# systemctl enable --now docker
Created symlink /etc/systemd/system/multi-user.target.wants/docker.service → /usr/lib/systemd/system/docker.service.
[root@node2 ~]# systemctl enable --now docker
Created symlink /etc/systemd/system/multi-user.target.wants/docker.service → /usr/lib/systemd/system/docker.service.
//查看docker版本号
[root@master ~]# docker --version
Docker version 20.10.12, build e91ed57
[root@node1 ~]# docker --version
Docker version 20.10.12, build e91ed57
[root@node2 ~]# docker --version
Docker version 20.10.12, build e91ed57
//配置加速器
//所有主机上操作
[root@master ~]# cat > /etc/docker/daemon.json << EOF
{
"registry-mirrors": ["https://7z2g0ixw.mirror.aliyuncs.com"], ## 配置加速器
"exec-opts": ["native.cgroupdriver=systemd"], ## 用systemd的方式来管理cgroup
"log-driver": "json-file", ## 日志格式用json
"log-opts": {
"max-size": "100m" ## 最大的大小100M，达到100M就滚动
},
"storage-driver": "overlay2" ## 存储驱动用overlay2
}
EOF
[root@node1 ~]# cat > /etc/docker/daemon.json << EOF
> {
> "registry-mirrors": ["https://7z2g0ixw.mirror.aliyuncs.com"],
> "exec-opts": ["native.cgroupdriver=systemd"],
> "log-driver": "json-file",
> "log-opts": {
> "max-size": "100m"
> },
> "storage-driver": "overlay2"
> }
> EOF
[root@node2 ~]# cat > /etc/docker/daemon.json << EOF
> {
> "registry-mirrors": ["https://7z2g0ixw.mirror.aliyuncs.com"],
> "exec-opts": ["native.cgroupdriver=systemd"],
> "log-driver": "json-file",
> "log-opts": {
> "max-size": "100m"
> },
> "storage-driver": "overlay2"
> }
> EOF
添加kubernetes阿里云YUM软件源
//所有主机上操作
[root@master ~]# cat > /etc/yum.repos.d/kubernetes.repo << EOF
> [kubernetes]
> name=Kubernetes
> baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
> enabled=1
> gpgcheck=0
> repo_gpgcheck=0
> gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
> EOF
[root@master ~]# yum clean all
[root@master ~]# yum makecache
[root@node1 ~]# cat > /etc/yum.repos.d/kubernetes.repo << EOF
> [kubernetes]
> name=Kubernetes
> baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
> enabled=1
> gpgcheck=0
> repo_gpgcheck=0
> gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
> EOF
[root@node1 ~]# yum clean all
[root@node1 ~]# yum makecache
[root@node2 ~]# cat > /etc/yum.repos.d/kubernetes.repo << EOF
> [kubernetes]
> name=Kubernetes
> baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
> enabled=1
> gpgcheck=0
> repo_gpgcheck=0
> gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
> EOF
[root@node2 ~]# yum clean all
[root@node2 ~]# yum makecache
安装kubeadm，kubelet和kubectl
由于版本更新频繁，这里指定版本号部署：
[root@master ~]# yum install -y kubelet-1.20.0 kubeadm-1.20.0 kubectl-1.20.0
[root@master ~]# systemctl enable kubelet
Created symlink /etc/systemd/system/multi-user.target.wants/kubelet.service → /usr/lib/systemd/system/kubelet.service.
[root@node1 ~]# yum install -y kubelet-1.20.0 kubeadm-1.20.0 kubectl-1.20.0
[root@node1 ~]# systemctl enable kubelet
Created symlink /etc/systemd/system/multi-user.target.wants/kubelet.service → /usr/lib/systemd/system/kubelet.service.
[root@node2 ~]# yum install -y kubelet-1.20.0 kubeadm-1.20.0 kubectl-1.20.0
[root@node2 ~]# systemctl enable kubelet
Created symlink /etc/systemd/system/multi-user.target.wants/kubelet.service → /usr/lib/systemd/system/kubelet.service.
部署Kubernetes Master
在192.168.200.140（Master）执行。
[root@master ~]# kubeadm init --apiserver-advertise-address=192.168.200.140 --image-repository registry.aliyuncs.com/google_containers --kubernetes-version v1.20.0 --service-cidr=10.96.0.0/12 --pod-network-cidr=10.244.0.0/16
[init] Using Kubernetes version: v1.20.0
[preflight] Running pre-flight checks
[WARNING FileExisting-tc]: tc not found in system path
[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.12. Latest validated version: 19.03
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local master.example.com] and IPs [10.96.0.1 192.168.200.140]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [localhost master.example.com] and IPs [192.168.200.140 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [localhost master.example.com] and IPs [192.168.200.140 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 11.005206 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.20" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node master.example.com as control-plane by adding the labels "node-role.kubernetes.io/master=''" and "node-role.kubernetes.io/control-plane='' (deprecated)"
[mark-control-plane] Marking the node master.example.com as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: 5nzjif.22729e6uph9sfmyt
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config ## 如果是普通用户就运行下面三条命令
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf ## 如果是管理员就运行下面一条命令
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.200.140:6443 --token 5nzjif.22729e6uph9sfmyt \
--discovery-token-ca-cert-hash sha256:787d26c0edf3e421d7fc8d24e051a7219125612604f33d2710635f8105fbc20f
//将上面这段写到一个文件中，方便以后用到
[root@master ~]# vim init
[root@master ~]# cat init
kubeadm join 192.168.200.140:6443 --token 5nzjif.22729e6uph9sfmyt \
--discovery-token-ca-cert-hash sha256:787d26c0edf3e421d7fc8d24e051a7219125612604f33d2710635f8105fbc20f
由于默认拉取镜像地址k8s.gcr.io国内无法访问，这里指定阿里云镜像仓库地址。
使用kubectl工具：
//让环境变量永久生效
//master主机上操作
[root@master ~]# echo 'export KUBECONFIG=/etc/kubernetes/admin.conf' > /etc/profile.d/k8s.sh
[root@master ~]# source /etc/profile.d/k8s.sh
//查看是否有控制节点
[root@master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master.example.com Ready control-plane,master 15m v1.20.0
安装Pod网络插件（CNI）
[root@master ~]# vi kube-flannel.yml //注意在编辑文件时，此处应使用vi(vi 复制粘贴是保持文本的 格式而vim 则会有所改变)
---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
name: psp.flannel.unprivileged
annotations:
seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
privileged: false
volumes:
- configMap
- secret
- emptyDir
- hostPath
allowedHostPaths:
- pathPrefix: "/etc/cni/net.d"
- pathPrefix: "/etc/kube-flannel"
- pathPrefix: "/run/flannel"
readOnlyRootFilesystem: false
# Users and groups
runAsUser:
rule: RunAsAny
supplementalGroups:
rule: RunAsAny
fsGroup:
rule: RunAsAny
# Privilege Escalation
allowPrivilegeEscalation: false
defaultAllowPrivilegeEscalation: false
# Capabilities
allowedCapabilities: ['NET_ADMIN', 'NET_RAW']
defaultAddCapabilities: []
requiredDropCapabilities: []
# Host namespaces
hostPID: false
hostIPC: false
hostNetwork: true
hostPorts:
- min: 0
max: 65535
# SELinux
seLinux:
# SELinux is unused in CaaSP
rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: flannel
rules:
- apiGroups: ['extensions']
resources: ['podsecuritypolicies']
verbs: ['use']
resourceNames: ['psp.flannel.unprivileged']
- apiGroups:
- ""
resources:
- pods
verbs:
- get
- apiGroups:
- ""
resources:
- nodes
verbs:
- list
- watch
- apiGroups:
- ""
resources:
- nodes/status
verbs:
- patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: flannel
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: flannel
subjects:
- kind: ServiceAccount
name: flannel
namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: flannel
namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
name: kube-flannel-cfg
namespace: kube-system
labels:
tier: node
app: flannel
data:
cni-conf.json: |
{
"name": "cbr0",
"cniVersion": "0.3.1",
"plugins": [
{
"type": "flannel",
"delegate": {
"hairpinMode": true,
"isDefaultGateway": true
}
},
{
"type": "portmap",
"capabilities": {
"portMappings": true
}
}
]
}
net-conf.json: |
{
"Network": "10.244.0.0/16",
"Backend": {
"Type": "vxlan"
}
}
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: kube-flannel-ds
namespace: kube-system
labels:
tier: node
app: flannel
spec:
selector:
matchLabels:
app: flannel
template:
metadata:
labels:
tier: node
app: flannel
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: kubernetes.io/os
operator: In
values:
- linux
hostNetwork: true
priorityClassName: system-node-critical
tolerations:
- operator: Exists
effect: NoSchedule
serviceAccountName: flannel
initContainers:
- name: install-cni-plugin
image: rancher/mirrored-flannelcni-flannel-cni-plugin:v1.0.0
command:
- cp
args:
- -f
- /flannel
- /opt/cni/bin/flannel
volumeMounts:
- name: cni-plugin
mountPath: /opt/cni/bin
- name: install-cni
image: quay.io/coreos/flannel:v0.15.1
command:
- cp
args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
volumeMounts:
- name: cni
mountPath: /etc/cni/net.d
- name: flannel-cfg
mountPath: /etc/kube-flannel/
containers:
- name: kube-flannel
image: quay.io/coreos/flannel:v0.15.1
command:
- /opt/bin/flanneld
args:
- --ip-masq
- --kube-subnet-mgr
resources:
requests:
cpu: "100m"
memory: "50Mi"
limits:
cpu: "100m"
memory: "50Mi"
securityContext:
privileged: false
capabilities:
add: ["NET_ADMIN", "NET_RAW"]
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: run
mountPath: /run/flannel
- name: flannel-cfg
mountPath: /etc/kube-flannel/
volumes:
- name: run
hostPath:
path: /run/flannel
- name: cni-plugin
hostPath:
path: /opt/cni/bin
- name: cni
hostPath:
path: /etc/cni/net.d
- name: flannel-cfg
configMap:
name: kube-flannel-cfg
[root@master ~]# ls
anaconda-ks.cfg init kube-flannel.yml
[root@master ~]# kubectl apply -f kube-flannel.yml //指定文件执行
podsecuritypolicy.policy/psp.flannel.unprivileged created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created
加入Kubernetes Node
在192.168.200.142、192.168.200.143上（Node）执行。
向集群添加新节点，执行在kubeadm init输出的kubeadm join命令：
[root@node1 ~]# kubeadm join 192.168.200.140:6443 --token 5nzjif.22729e6uph9sfmyt \
> --discovery-token-ca-cert-hash sha256:787d26c0edf3e421d7fc8d24e051a7219125612604f33d2710635f8105fbc20f
[preflight] Running pre-flight checks
[WARNING FileExisting-tc]: tc not found in system path
[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.12. Latest validated version: 19.03
[WARNING Hostname]: hostname "node1.example.com" could not be reached
[WARNING Hostname]: hostname "node1.example.com": lookup node1.example.com on 192.168.200.2:53: no such host
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
[root@node2 ~]# kubeadm join 192.168.200.140:6443 --token 5nzjif.22729e6uph9sfmyt \
> --discovery-token-ca-cert-hash sha256:787d26c0edf3e421d7fc8d24e051a7219125612604f33d2710635f8105fbc20f
[preflight] Running pre-flight checks
[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.12. Latest validated version: 19.03
[WARNING Hostname]: hostname "node2.example.com" could not be reached
[WARNING Hostname]: hostname "node2.example.com": lookup node2.example.com on 192.168.200.2:53: no such host
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
//查看，下面node2还是notready，是因为它的后台还有东西在运行，等一会就可以了，等它变成ready
[root@master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master.example.com Ready control-plane,master 15m v1.20.0
node1.example.com Ready <none> 7m53s v1.20.0
node2.example.com Ready <none> 6m49s v1.20.0
//部署成功后node1和node2会自动运行一些容器，镜像
[root@node1 ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
quay.io/coreos/flannel v0.15.1 e6ea68648f0c 5 weeks ago 69.5MB
rancher/mirrored-flannelcni-flannel-cni-plugin v1.0.0 cd5235cd7dc2 7 weeks ago 9.03MB
registry.aliyuncs.com/google_containers/kube-proxy v1.20.0 10cc881966cf 12 months ago 118MB
registry.aliyuncs.com/google_containers/pause 3.2 80d28bedfe5d 22 months ago 683kB
[root@node1 ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2b3f3e7ef49e e6ea68648f0c "/opt/bin/flanneld -…" 26 minutes ago Up 26 minutes k8s_kube-flannel_kube-flannel-ds-hms85_kube-system_4451bf8c-3481-422b-82d7-f4d36db0e820_0
eb6202befbbb registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 28 minutes ago Up 27 minutes k8s_POD_kube-flannel-ds-hms85_kube-system_4451bf8c-3481-422b-82d7-f4d36db0e820_0
f5a8811d22f3 registry.aliyuncs.com/google_containers/kube-proxy "/usr/local/bin/kube…" 30 minutes ago Up 30 minutes k8s_kube-proxy_kube-proxy-lm26z_kube-system_d4b9fdce-1425-46b7-9b30-23ad6e00d4b4_0
f052f660e3c0 registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 31 minutes ago Up 31 minutes k8s_POD_kube-proxy-lm26z_kube-system_d4b9fdce-1425-46b7-9b30-23ad6e00d4b4_0
[root@node2 ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
nginx latest f652ca386ed1 2 weeks ago 141MB
quay.io/coreos/flannel v0.15.1 e6ea68648f0c 5 weeks ago 69.5MB
rancher/mirrored-flannelcni-flannel-cni-plugin v1.0.0 cd5235cd7dc2 7 weeks ago 9.03MB
registry.aliyuncs.com/google_containers/kube-proxy v1.20.0 10cc881966cf 12 months ago 118MB
registry.aliyuncs.com/google_containers/pause 3.2 80d28bedfe5d 22 months ago 683kB
[root@node2 ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2f8dda1f4cf2 nginx "/docker-entrypoint.…" 22 minutes ago Up 22 minutes k8s_nginx_nginx-6799fc88d8-d97xz_default_94d29f93-3384-43aa-a359-28c872d1aaeb_0
fa143d70104d registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 23 minutes ago Up 23 minutes k8s_POD_nginx-6799fc88d8-d97xz_default_94d29f93-3384-43aa-a359-28c872d1aaeb_0
9437112cf83b e6ea68648f0c "/opt/bin/flanneld -…" 27 minutes ago Up 27 minutes k8s_kube-flannel_kube-flannel-ds-shjdh_kube-system_44e8f447-7c14-4855-adfb-8462a43da152_0
0a1f888f5fc0 registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 28 minutes ago Up 28 minutes k8s_POD_kube-flannel-ds-shjdh_kube-system_44e8f447-7c14-4855-adfb-8462a43da152_0
1570165ba280 registry.aliyuncs.com/google_containers/kube-proxy "/usr/local/bin/kube…" 30 minutes ago Up 30 minutes k8s_kube-proxy_kube-proxy-gg296_kube-system_1cb756a1-0a45-47ca-86cf-fed5a0563f2c_0
027500a9d9e7 registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 30 minutes ago Up 30 minutes k8s_POD_kube-proxy-gg296_kube-system_1cb756a1-0a45-47ca-86cf-fed5a0563f2c_0
//查看名称空间
[root@master ~]# kubectl get ns
NAME STATUS AGE
default Active 40m
kube-node-lease Active 40m
kube-public Active 40m
kube-system Active 40m
//指定名称空间去看pods的信息
[root@master ~]# kubectl get pods -n kube-system
NAME READY STATUS RESTARTS AGE
coredns-7f89b7bc75-7f99f 1/1 Running 0 40m
coredns-7f89b7bc75-trgz6 1/1 Running 0 40m
etcd-master.example.com 1/1 Running 0 40m
kube-apiserver-master.example.com 1/1 Running 0 40m
kube-controller-manager-master.example.com 1/1 Running 0 40m
kube-flannel-ds-2t2hk 1/1 Running 0 30m
kube-flannel-ds-hms85 1/1 Running 0 30m
kube-flannel-ds-shjdh 1/1 Running 0 30m
kube-proxy-gg296 1/1 Running 0 32m
kube-proxy-lm26z 1/1 Running 0 33m
kube-proxy-vv24b 1/1 Running 0 40m
kube-scheduler-master.example.com 1/1 Running 0 40m
//查看pods在哪运行
[root@master ~]# kubectl get pods -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
coredns-7f89b7bc75-7f99f 1/1 Running 0 41m 10.244.0.3 master.example.com <none> <none>
coredns-7f89b7bc75-trgz6 1/1 Running 0 41m 10.244.0.2 master.example.com <none> <none>
etcd-master.example.com 1/1 Running 0 41m 192.168.200.140 master.example.com <none> <none>
kube-apiserver-master.example.com 1/1 Running 0 41m 192.168.200.140 master.example.com <none> <none>
kube-controller-manager-master.example.com 1/1 Running 0 41m 192.168.200.140 master.example.com <none> <none>
kube-flannel-ds-2t2hk 1/1 Running 0 30m 192.168.200.140 master.example.com <none> <none>
kube-flannel-ds-hms85 1/1 Running 0 30m 192.168.200.142 node1.example.com <none> <none>
kube-flannel-ds-shjdh 1/1 Running 0 30m 192.168.200.143 node2.example.com <none> <none>
kube-proxy-gg296 1/1 Running 0 33m 192.168.200.143 node2.example.com <none> <none>
kube-proxy-lm26z 1/1 Running 0 34m 192.168.200.142 node1.example.com <none> <none>
kube-proxy-vv24b 1/1 Running 0 41m 192.168.200.140 master.example.com <none> <none>
kube-scheduler-master.example.com 1/1 Running 0 41m 192.168.200.140 master.example.com <none> <none>
测试kubernetes集群
[root@master ~]# kubectl create deployment nginx --image=nginx
deployment.apps/nginx created
//暴露端口号，暴露的是service的端口号，不能用pod的IP地址去访问，也不能用pod的主机名去访问，要访问的话只能用service访问
[root@master ~]# kubectl expose deployment nginx --port=80 --type=NodePort
service/nginx exposed
[root@master ~]# kubectl get pods
NAME READY STATUS RESTARTS AGE
nginx-6799fc88d8-d97xz 0/1 ContainerCreating 0 24s
[root@master ~]# kubectl get pod,svc
NAME READY STATUS RESTARTS AGE
pod/nginx-6799fc88d8-d97xz 1/1 Running 0 115s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 17m
service/nginx NodePort 10.103.78.103 <none> 80:30904/TCP 103s
// 测试能否访问
[root@master ~]# curl 10.103.78.103
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>

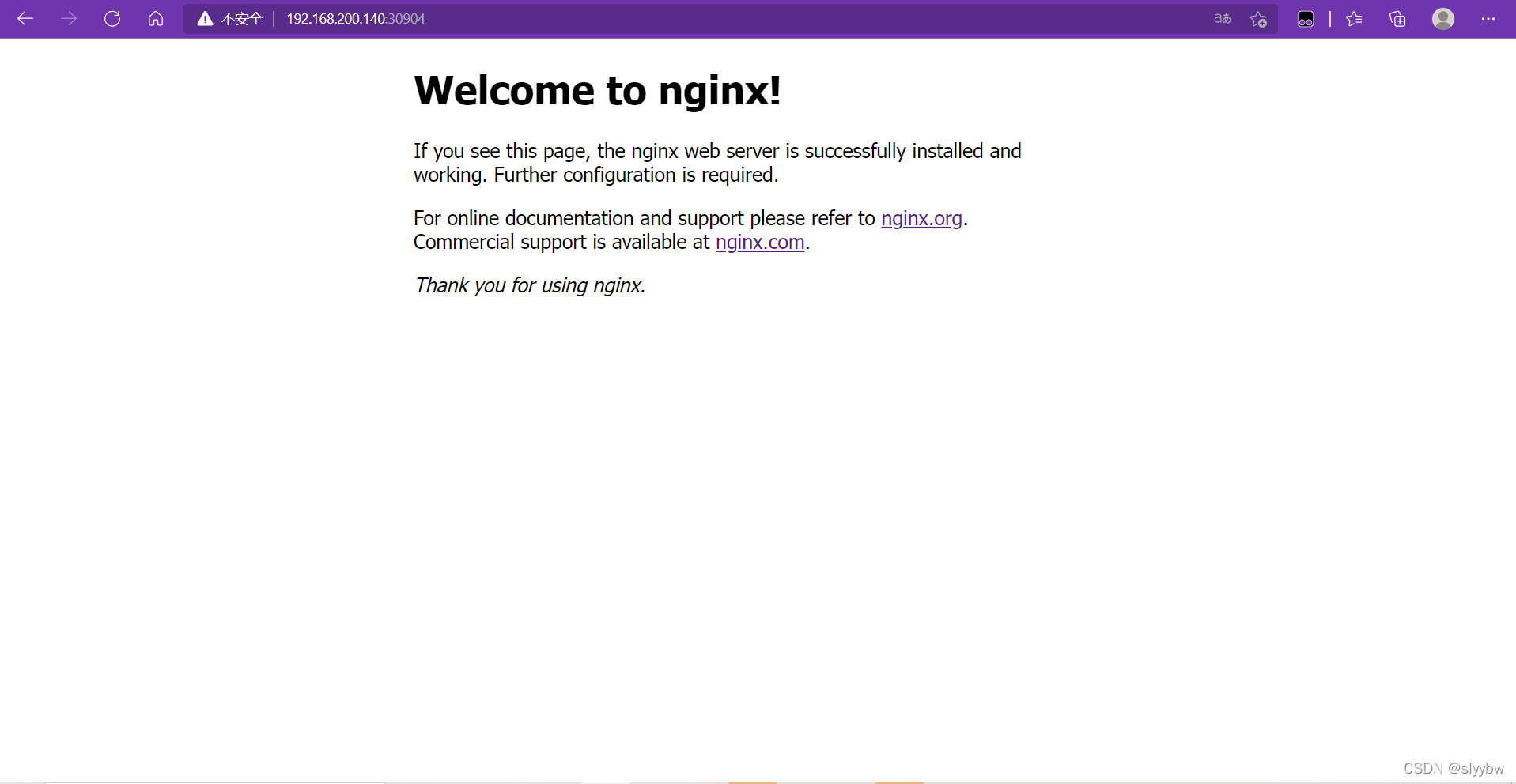

网页上访问
master IP：service端口号（我这里的端口号是30904）
开源、云原生的融合云平台
更多推荐
0
0- 0
已为社区贡献2条内容
所有评论(0)
